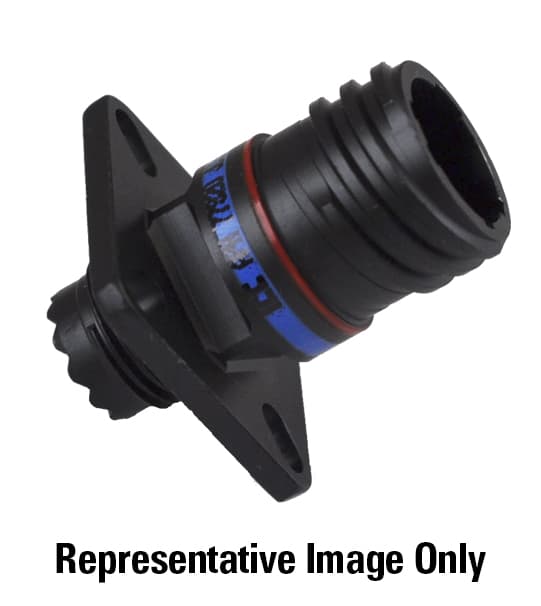

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.D38999/26KG41SN
MIL-DTL-38999 III (D38999) harsh environment connectors consist of wall mount receptacles, jam nut receptacles, and straight self-locking RFI plugs. They are offered in 9 shell sizes and 54 insert arrangements, utilizing M39029 contacts in sizes 22D, 20, 16, 12, 10 power, and 8 twinax. 38999 Series 3 connectors are offered in a variety of shell materials, including aluminum, stainless steel, and lightweight composite. They are also available in a wide assortment of plating options, including olive drab cadmium, nickel, black zinc nickel, and passivated stainless steel. Selection includes RoHS-compliant, cadmium-free finishes, as well as Boeing BACC-approved designs.
Manufacturer
Amphenol Aerospace
Manufacturer Product Number
D38999/26KG41SN
Brief Description
MIL-DTL-38999/26 - Connectors, Electrical, Circular, Plug, Straight, Removable Crimp Contacts, Series III
D38999/26KG41SN Product Specification
| Product Category | Products Connectors Circular Connectors & Accessories Circular Connectors |
|---|---|
| Manufacturer | Amphenol Aerospace |
| Manufacturer Part Number | Amphenol Aerospace D38999/26KG41SN |
| Military Specification | MIL-DTL-38999 III |
| Series | Series III |
| Connector Type | Circular, Plug |
| Number of Contacts | 41 |
| Mount Type | Straight Plug |
| Contact Plating | Gold |
| Maximum Operating Temperature | 200 °C |
| Minimum Operating Temperature | -65 °C |
| Shell Size | 21 |
| Contact Size | 20(41) |
| Contact Type | Removable Crimp Contacts |
| Mating Type | Threaded |
| Finish/Coating | Passivated |
| Keyway Polarization | N |
| Service Rating | I |
| Shell Style | Straight Plug EMI/RFI Shielding |
| Shell Size - Insert Arrangement | G41 |
| Service Class | K |
| Shell Material | Stainless Steel |
| Contact Gender | Female |
| Contact Mating Life | 500 Cycles |
| Conductivity | Conductive |
| Ingress Protection | Environment Resistant, Firewall |
| Contact Style | Socket |
| Service Class Detail | Firewall Passivated Stainless Steel Shell (Conductive) |
| SKU | AAOD38999/26KG41SN |
