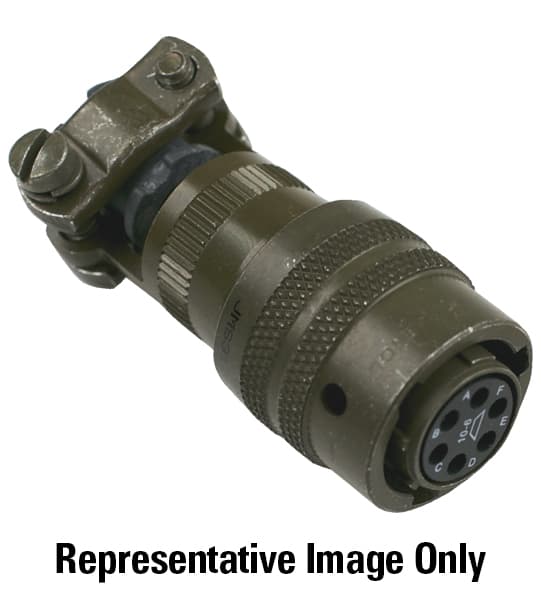

MS3124E20-16PXImage shown is a representation only. Exact specifications should be obtained from the product data sheet.

MS3124E20-16PX

Used in both military-aerospace and commercial applications, MIL-DTL-26482 I harsh environment connectors are offered with crimp M39029 contacts as well as solder contacts. 26482 1 connectors consist of the following:        •  Wall mount, box mount, bulkhead mount, cable connecting, jam nut, and hermetic receptacles        •  Straight plugs Available in 7 shell sizes with 60 insert patterns utilizing solder contacts, and 6 shell sizes with 47 insert patterns utilizing crimp contacts. Contact sizes include 20, 16, 12, 12 coax, and 8 coax. 26482 Series 1 connectors feature rugged aluminum shells with standard olive drab cadmium plating.

Manufacturer

Amphenol Industrial Operations

Manufacturer Product Number

MS3124E20-16PX

Brief Description

MS3124 - Connectors, Receptacle, Electrical, Crimp Type, Rear Mounting, Jam Nut, Bayonet Coupling, 26482 Series I

Request for quotation

MS3124E20-16PX Product Specification

Product CategoryProducts Connectors Circular Connectors & Accessories Circular Connectors
ManufacturerAmphenol Industrial Operations
Manufacturer Part NumberAmphenol Industrial Operations MS3124E20-16PX
Military SpecificationMIL-DTL-26482 I
SeriesSeries I
Connector TypeCircular, Receptacle
Number of Contacts16
Mount TypeJam Nut Mounting
Contact PlatingGold
Maximum Operating Temperature125 °C
Minimum Operating Temperature-55 °C
Contact Size16(16)
Contact TypeRemovable Crimp Contacts, Front Release
Mating TypeBayonet
Finish/CoatingCadmium Olive Drab
Termination TypeCrimp
Keyway PolarizationX
Service RatingII
Shell StyleJam Nut Mounting Receptacle
Shell Size - Insert Arrangement20-16
Service ClassE
Shell MaterialAluminum
Contact GenderMale
ConductivityConductive
Ingress ProtectionEnvironment Resistant
Contact StylePin
Service Class DetailGrommet Seal, Conductive
SKUAMIMS3124E20-16PX
