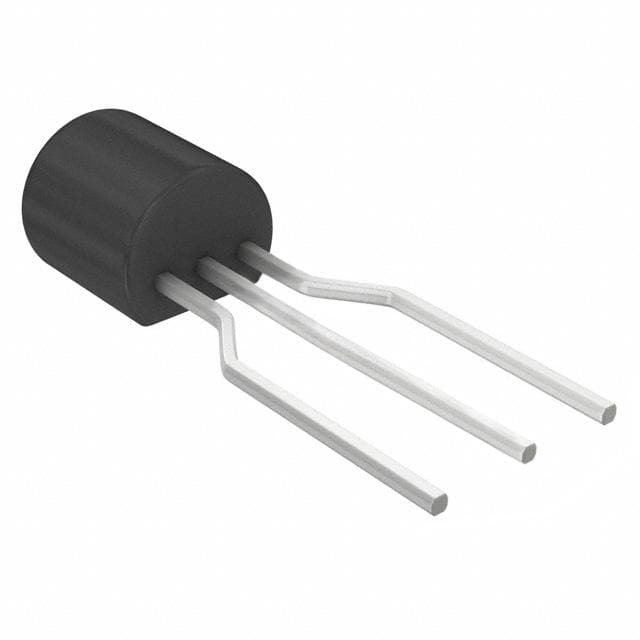

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.Request for quotation
2SA1015 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | Micro Commercial Co |
| Series | - |
| Package | Tape & Box (TB) |
| Product Status | Obsolete |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 150 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 120 @ 2mA, 6V |
| Power - Max | 400 mW |
| Frequency - Transition | 80MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92 |
| Base Product Number | 2SA1015 |
