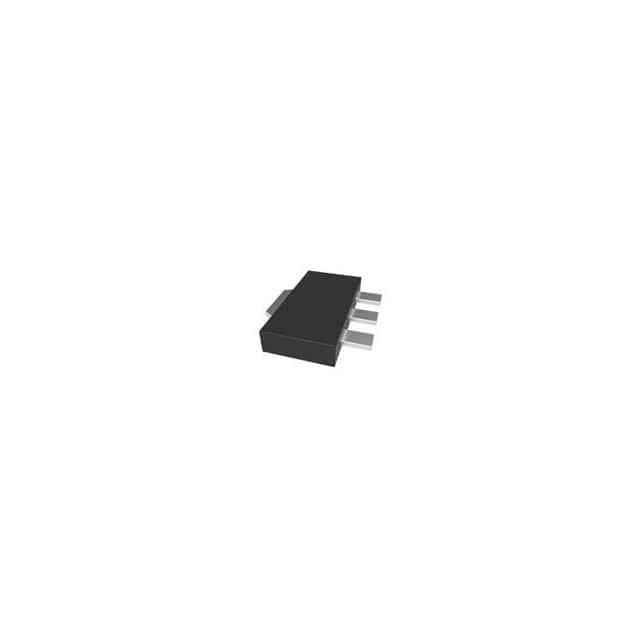

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.Request for quotation
2SB1132 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | Micro Commercial Co |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 500nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 180 @ 100mA, 2V |
| Power - Max | 500 mW |
| Frequency - Transition | 150MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89 |
| Base Product Number | 2SB1132 |
