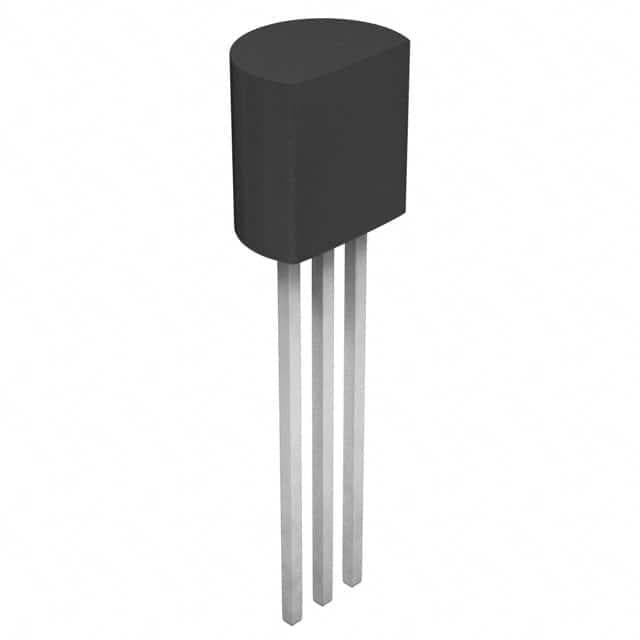

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.Request for quotation
2SC2383 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | Micro Commercial Co |
| Series | - |
| Package | Tape & Box (TB) |
| Product Status | Obsolete |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 160 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 200mA, 5V |
| Power - Max | 900 mW |
| Frequency - Transition | 20MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 Long Body (Formed Leads) |
| Supplier Device Package | TO-92MOD |
| Base Product Number | 2SC2383 |
