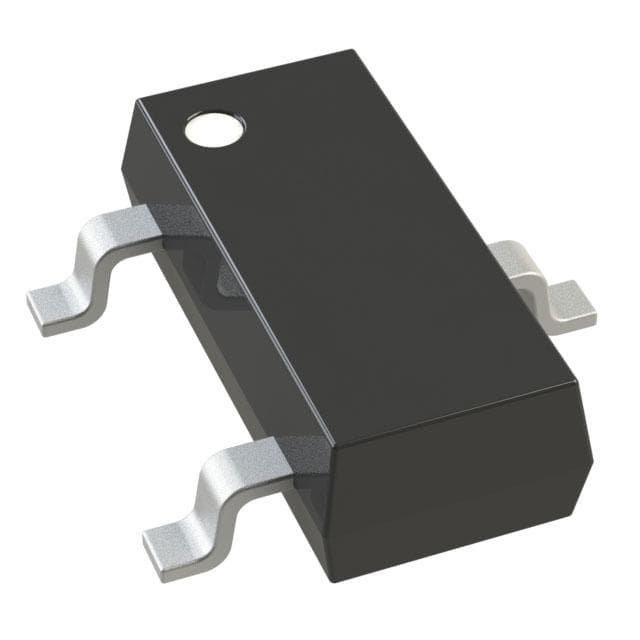

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.PMBTA56-QR
4 Weeks
Manufacturer
Nexperia USA Inc.
Manufacturer Product Number
PMBTA56-QR
Brief Description
PMBTA56-Q/SOT23/TO-236AB
Request for quotation
PMBTA56-QR Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | Nexperia USA Inc. |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 50nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 100mA, 1V |
| Power - Max | 250 mW |
| Frequency - Transition | 50MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | TO-236AB |
