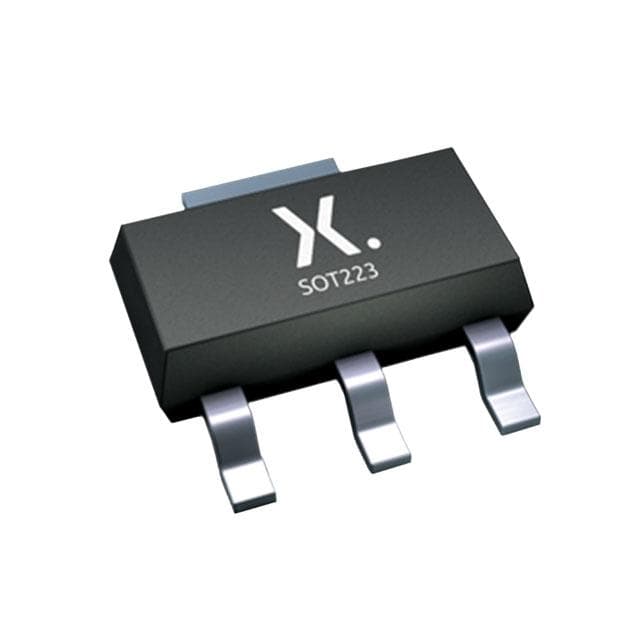

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.PZTA14
8 Weeks
Manufacturer
Nexperia USA Inc.
Manufacturer Product Number
PZTA14
Brief Description
TRANS NPN DARL 30V 0.5A SOT223
Request for quotation
PZTA14 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | Nexperia USA Inc. |
| Series | Automotive, AEC-Q101 |
| Package | Tape & Reel (TR) |
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 100µA, 100mA |
| Current - Collector Cutoff (Max) | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20000 @ 100mA, 5V |
| Power - Max | 1.25 W |
| Frequency - Transition | 125MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| Base Product Number | PZTA14 |
