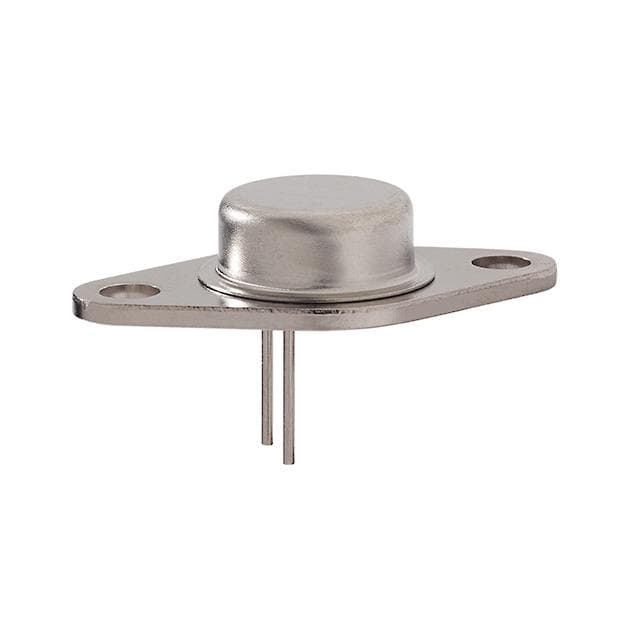

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.Request for quotation
2N6294 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | NTE Electronics, Inc |
| Series | - |
| Package | Bag |
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 4 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 40mA, 4A |
| Current - Collector Cutoff (Max) | 500µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 2A, 3V |
| Power - Max | 50 W |
| Frequency - Transition | - |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-213AA, TO-66-2 |
| Supplier Device Package | TO-66 |
