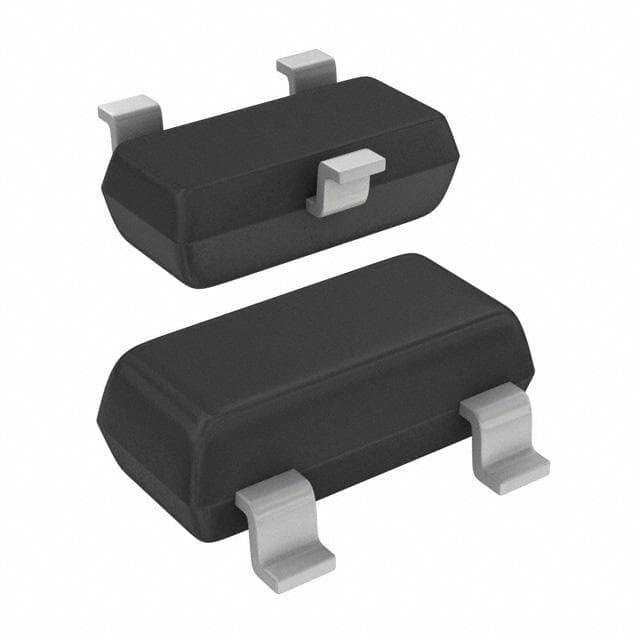

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.Request for quotation
12A02 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 12 V |
| Vce Saturation (Max) @ Ib, Ic | 240mV @ 20mA, 400mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 10mA, 2V |
| Power - Max | 700 mW |
| Frequency - Transition | 450MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-96 |
| Supplier Device Package | 3-CPH |
| Base Product Number | 12A02 |
