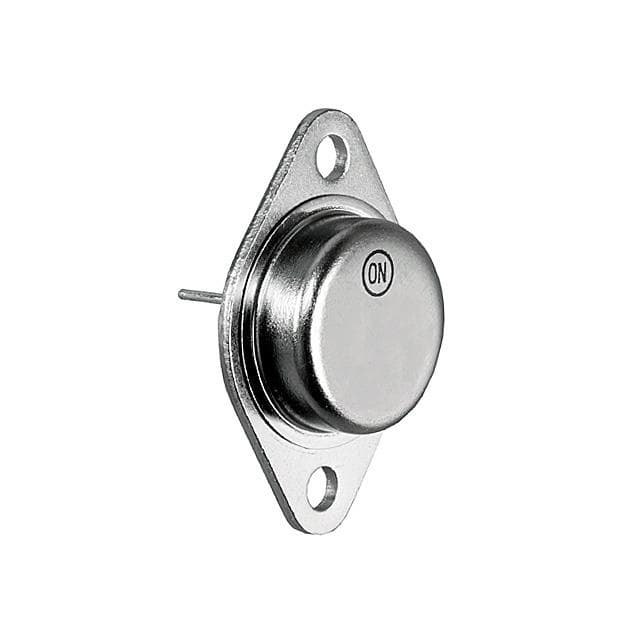

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.2N3055
13 Weeks
Manufacturer
onsemi
Manufacturer Product Number
2N3055
Brief Description
TRANS NPN 60V 15A TO204
Request for quotation
2N3055 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | onsemi |
| Series | - |
| Package | Tray |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 3V @ 3.3A, 10A |
| Current - Collector Cutoff (Max) | 700µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 4A, 4V |
| Power - Max | 115 W |
| Frequency - Transition | 2.5MHz |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-204 (TO-3) |
| Base Product Number | 2N3055 |
