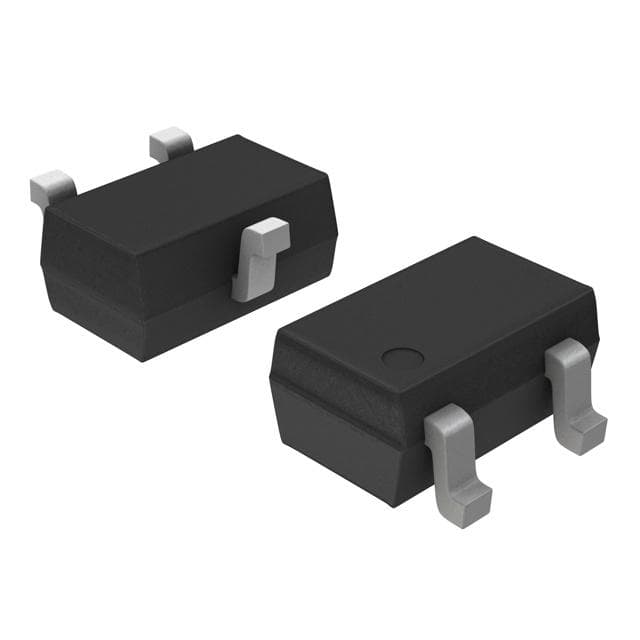

2SA1576Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

2SA1576

Bipolar (BJT) Transistor PNP 50 V 100 mA 200 mW Surface Mount SC-70-3 (SOT323)

Manufacturer

onsemi

Manufacturer Product Number

2SA1576

Brief Description

TRANS PNP 50V 0.1A SC70-3

Request for quotation

2SA1576 Product Specification

CategoryDiscrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors
Mfronsemi
Series-
PackageTape & Reel (TR) Bulk
Transistor TypePNP
Current - Collector (Ic) (Max)100 mA
Voltage - Collector Emitter Breakdown (Max)50 V
Vce Saturation (Max) @ Ib, Ic500mV @ 10mA, 100mA
Current - Collector Cutoff (Max)100nA
DC Current Gain (hFE) (Min) @ Ic, Vce180 @ 2mA, 6V
Power - Max200 mW
Frequency - Transition-
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-70, SOT-323
Supplier Device PackageSC-70-3 (SOT323)
Base Product Number2SA1576
