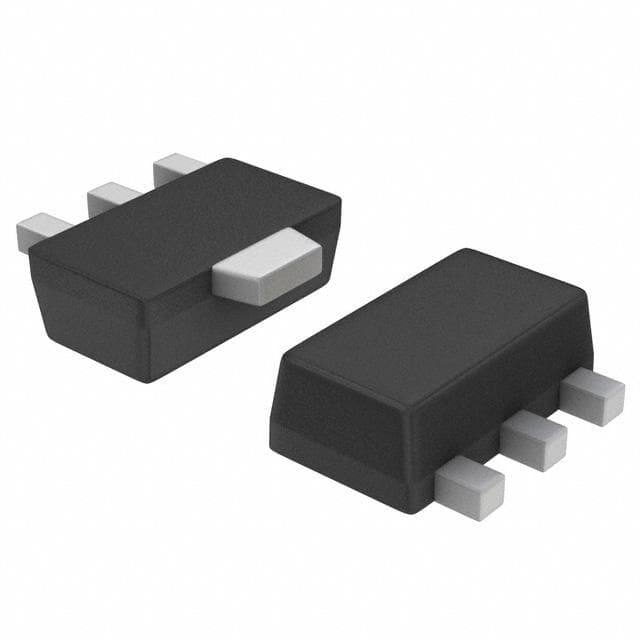

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

BCX56

Name: onsemi BCX56
Brand: onsemi
Rating: 0 (1 reviews)

Bipolar (BJT) Transistor NPN 80 V 1 A 130MHz 1.56 W Surface Mount SOT-89-3

Manufacturer

onsemi

Manufacturer Product Number

BCX56

Brief Description

TRANS NPN 80V 1A SOT89-3

Request for quotation

Quantity

Purchase Description

BCX56 Product Specification

Category	Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors
Mfr	onsemi
Series	-
Package	Tape & Reel (TR) Bulk
Transistor Type	NPN
Current - Collector (Ic) (Max)	1 A
Voltage - Collector Emitter Breakdown (Max)	80 V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V
Power - Max	1.56 W
Frequency - Transition	130MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-243AA
Supplier Device Package	SOT-89-3
Base Product Number	BCX56
