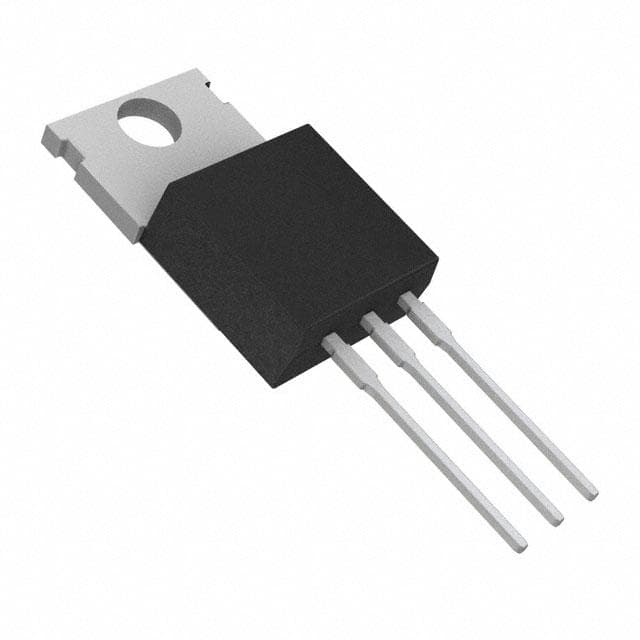

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.BDX53
13 Weeks
Manufacturer
onsemi
Manufacturer Product Number
BDX53
Brief Description
TRANS NPN DARL 80V 8A TO220
Request for quotation
BDX53 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | onsemi |
| Series | - |
| Package | Tube |
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 8 A |
| Voltage - Collector Emitter Breakdown (Max) | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 12mA, 3A |
| Current - Collector Cutoff (Max) | 500µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 750 @ 3A, 3V |
| Power - Max | 65 W |
| Frequency - Transition | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220 |
| Base Product Number | BDX53 |
