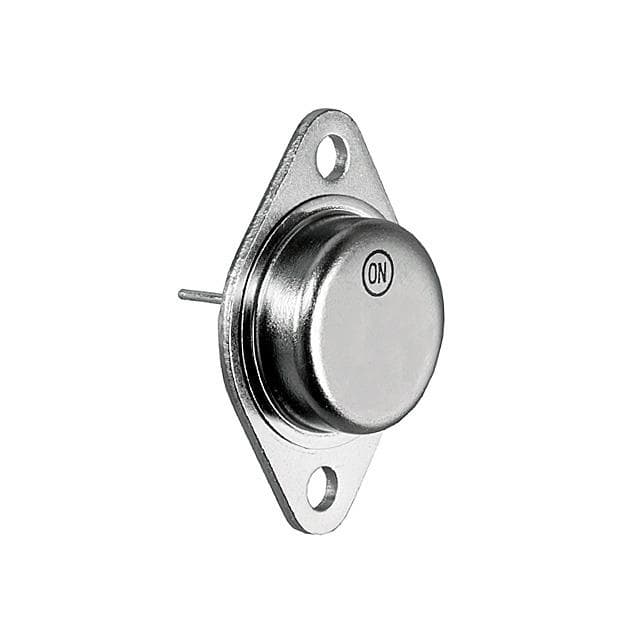

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.BUV21
13 Weeks
Manufacturer
onsemi
Manufacturer Product Number
BUV21
Brief Description
TRANS NPN 200V 40A TO204
Request for quotation
BUV21 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | onsemi |
| Series | SWITCHMODE™ |
| Package | Bulk Tray |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 200 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 3A, 25A |
| Current - Collector Cutoff (Max) | 3mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 20 @ 12A, 2V |
| Power - Max | 250 W |
| Frequency - Transition | 8MHz |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-204AE |
| Supplier Device Package | TO-204 (TO-3) |
| Base Product Number | BUV21 |
