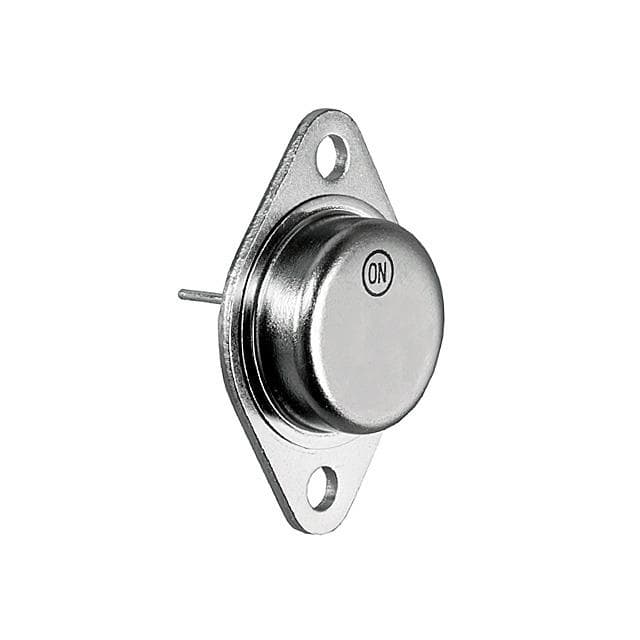

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.MJ15023
13 Weeks
Manufacturer
onsemi
Manufacturer Product Number
MJ15023
Brief Description
TRANS PNP 200V 16A TO204
Request for quotation
MJ15023 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | onsemi |
| Series | - |
| Package | Tray |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 16 A |
| Voltage - Collector Emitter Breakdown (Max) | 200 V |
| Vce Saturation (Max) @ Ib, Ic | 4V @ 3.2A, 16A |
| Current - Collector Cutoff (Max) | 500µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 8A, 4V |
| Power - Max | 250 W |
| Frequency - Transition | 4MHz |
| Operating Temperature | -65°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-204 (TO-3) |
| Base Product Number | MJ15023 |
