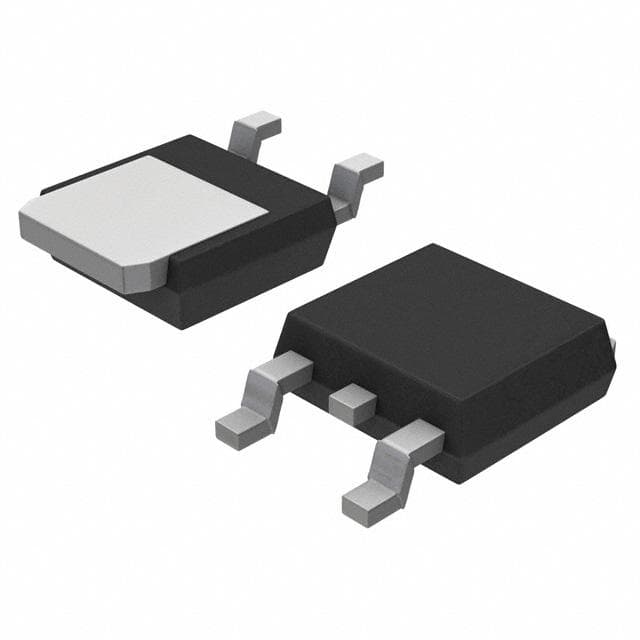

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.Request for quotation
MJD11 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | onsemi |
| Series | - |
| Package | Cut Tape (CT) Digi-Reel® |
| Transistor Type | PNP - Darlington |
| Current - Collector (Ic) (Max) | 2 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 2V @ 8mA, 2A |
| Current - Collector Cutoff (Max) | 20µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 2A, 3V |
| Power - Max | 20 W |
| Frequency - Transition | 25MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | MJD11 |
