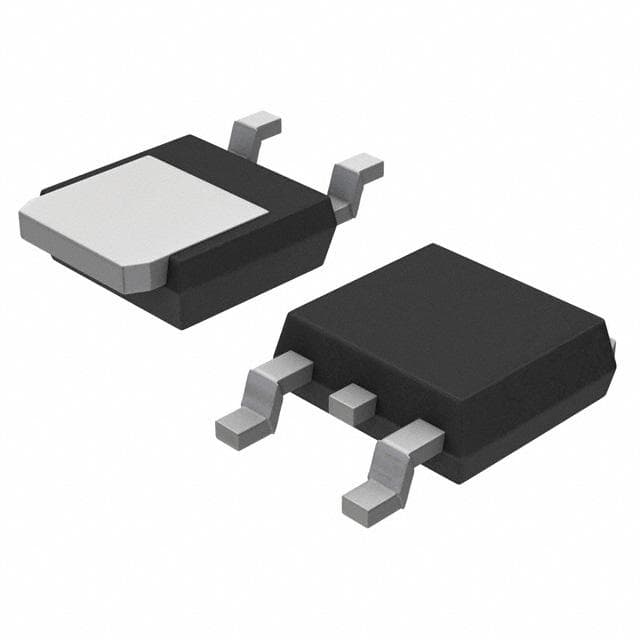

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.MJD32
13 Weeks
Manufacturer
onsemi
Manufacturer Product Number
MJD32
Brief Description
TRANS PNP 100V 3A DPAK
Request for quotation
MJD32 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | onsemi |
| Series | - |
| Package | Bulk Tube |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 100 V |
| Vce Saturation (Max) @ Ib, Ic | 1.2V @ 375mA, 3A |
| Current - Collector Cutoff (Max) | 50µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 3A, 4V |
| Power - Max | 1.56 W |
| Frequency - Transition | 3MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | MJD32 |
