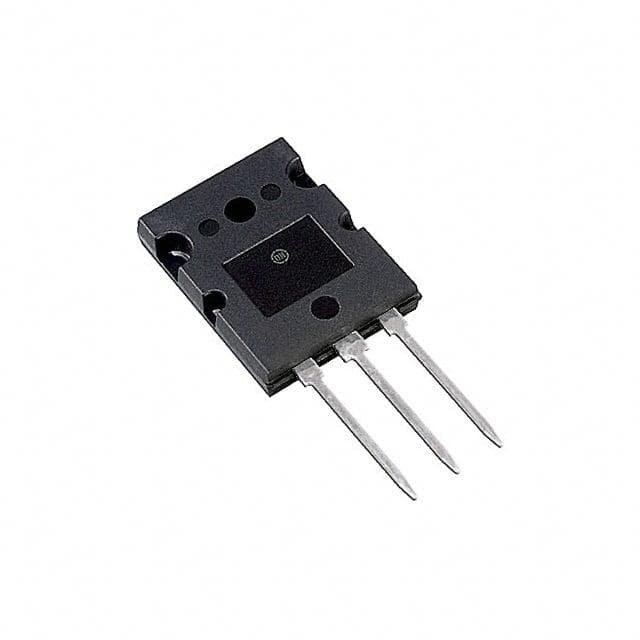

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.Request for quotation
MJL03 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | onsemi |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 15 A |
| Voltage - Collector Emitter Breakdown (Max) | 260 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 500mA, 5A |
| Current - Collector Cutoff (Max) | 10µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 75 @ 3A, 5V |
| Power - Max | 180 W |
| Frequency - Transition | 30MHz |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264 |
| Base Product Number | MJL03 |
