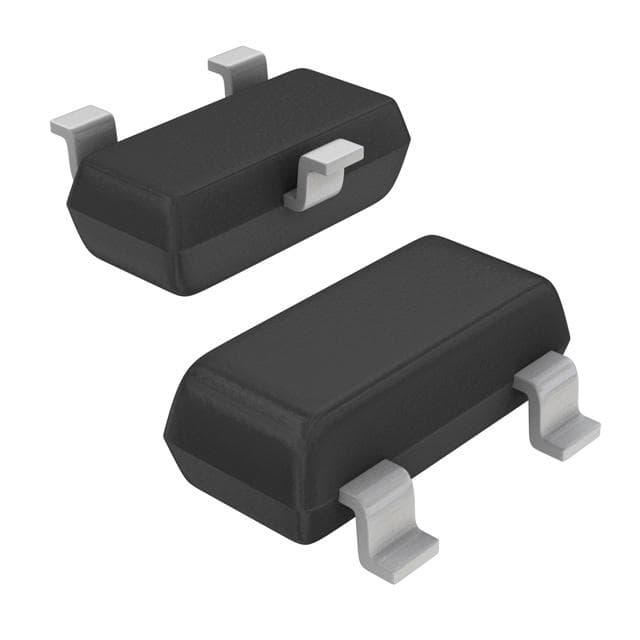

MMBTA06Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

MMBTA06

Bipolar (BJT) Transistor NPN 80 V 500 mA 100MHz 225 mW Surface Mount SOT-23-3 (TO-236)

Manufacturer

onsemi

Manufacturer Product Number

MMBTA06

Brief Description

TRANS DRIVER SS NPN 80V SOT23

Request for quotation

MMBTA06 Product Specification

CategoryDiscrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors
Mfronsemi
Series-
PackageBulk
Transistor TypeNPN
Current - Collector (Ic) (Max)500 mA
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic250mV @ 10mA, 100mA
Current - Collector Cutoff (Max)100nA
DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 100mA, 1V
Power - Max225 mW
Frequency - Transition100MHz
Operating Temperature-
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23-3 (TO-236)
Base Product NumberMMBTA06
