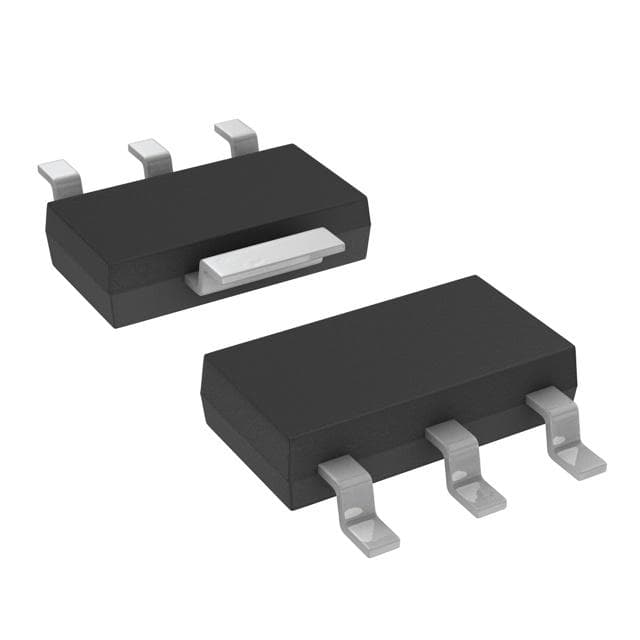

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.PZT2222
11 Weeks
Manufacturer
onsemi
Manufacturer Product Number
PZT2222
Brief Description
TRANS NPN 40V 0.6A SOT223
Request for quotation
PZT2222 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 10nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 150mA, 10V |
| Power - Max | 1.5 W |
| Frequency - Transition | 300MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 (TO-261) |
| Base Product Number | PZT2222 |
