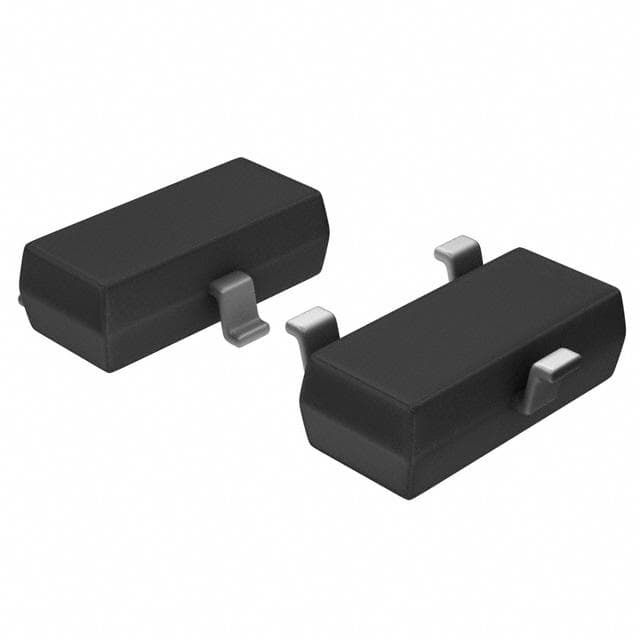

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.2SD1383
13 Weeks
Manufacturer
Rohm Semiconductor
Manufacturer Product Number
2SD1383
Brief Description
TRANS NPN DARL 32V 0.3A SMT3
Request for quotation
2SD1383 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | Rohm Semiconductor |
| Series | - |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Transistor Type | NPN - Darlington |
| Current - Collector (Ic) (Max) | 300 mA |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 400µA, 200mA |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 5000 @ 100mA, 5V |
| Power - Max | 200 mW |
| Frequency - Transition | 250MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SMT3 |
| Base Product Number | 2SD1383 |
