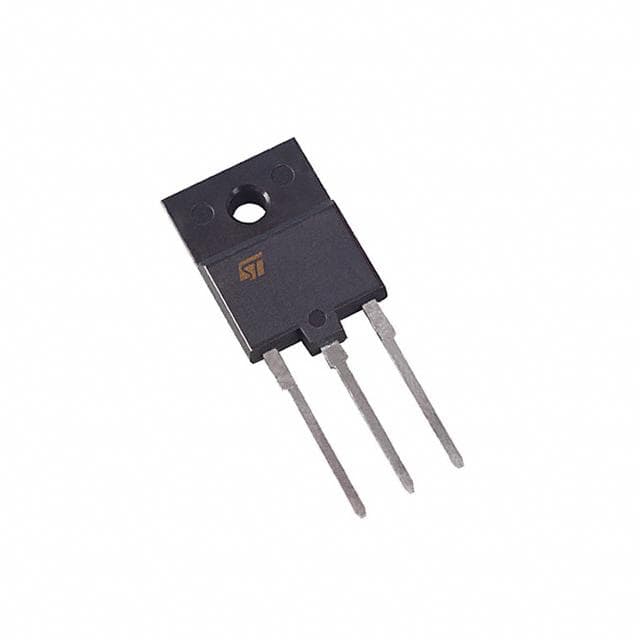

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.Request for quotation
ST1802 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tube |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 10 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Vce Saturation (Max) @ Ib, Ic | 5V @ 800mA, 4A |
| Current - Collector Cutoff (Max) | 1mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 4 @ 5A, 5V |
| Power - Max | 50 W |
| Frequency - Transition | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | ISOWATT-218-3 |
| Supplier Device Package | ISOWATT-218 |
| Base Product Number | ST1802 |
