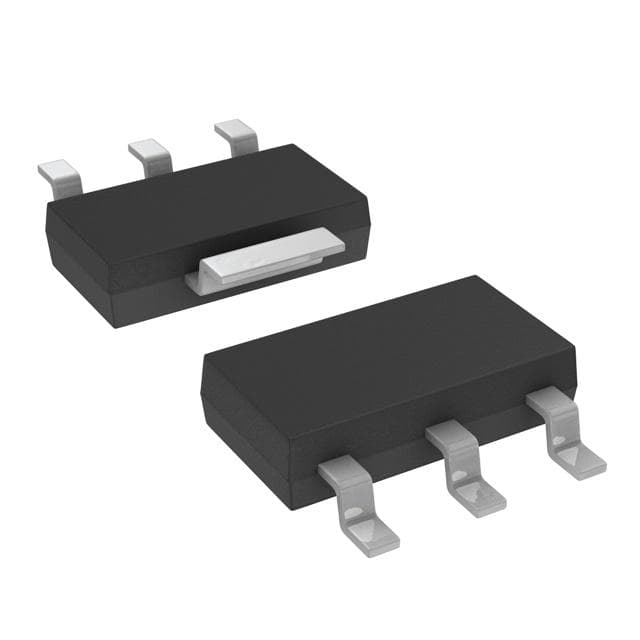

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.STN0214
22 Weeks
Manufacturer
STMicroelectronics
Manufacturer Product Number
STN0214
Brief Description
TRANS NPN 1200V 0.2A SOT223
Request for quotation
STN0214 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 200 mA |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Vce Saturation (Max) @ Ib, Ic | 300 mV @ 20mA, 100mA |
| Current - Collector Cutoff (Max) | 10µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 3 @ 200mA, 2V |
| Power - Max | 1.6 W |
| Frequency - Transition | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| Base Product Number | STN0214 |
