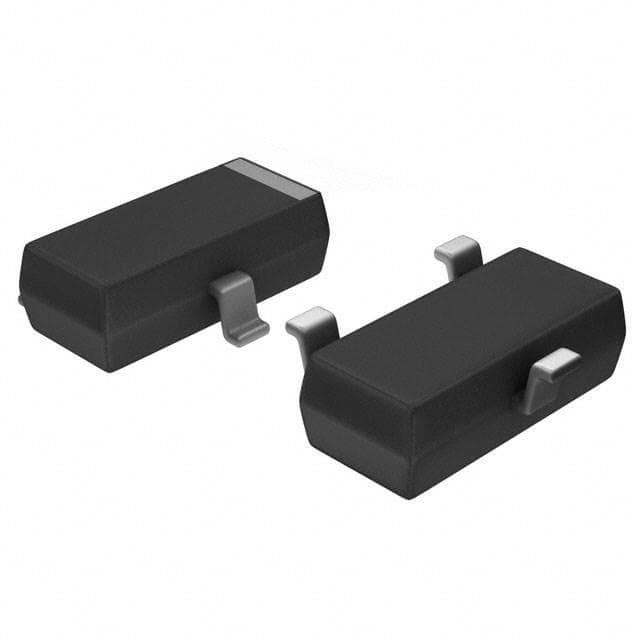

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.2SA1163
40 Weeks
Manufacturer
Toshiba Semiconductor and Storage
Manufacturer Product Number
2SA1163
Brief Description
TRANS PNP 120V 0.1A SMINI
Request for quotation
2SA1163 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | Toshiba Semiconductor and Storage |
| Series | - |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 120 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 1mA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 350 @ 2mA, 6V |
| Power - Max | 150 mW |
| Frequency - Transition | 100MHz |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | S-Mini |
| Base Product Number | 2SA1163 |
