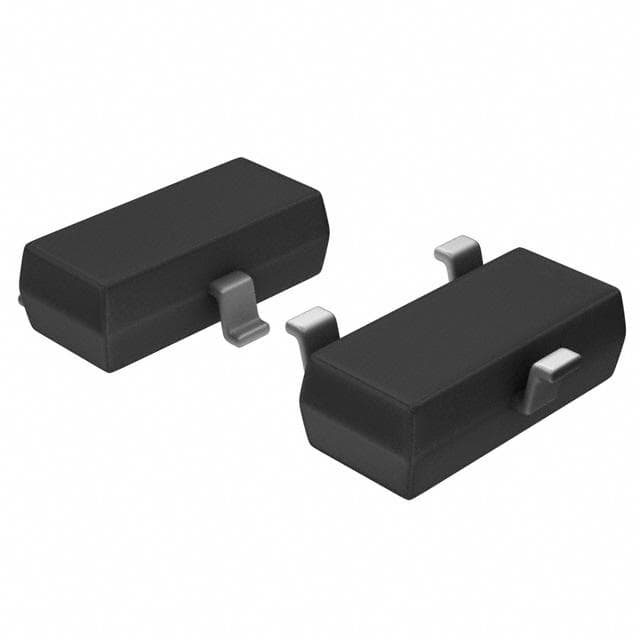

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.2SC2712
40 Weeks
Manufacturer
Toshiba Semiconductor and Storage
Manufacturer Product Number
2SC2712
Brief Description
TRANS NPN 50V 0.15A SMINI
Request for quotation
2SC2712 Product Specification
| Category | Discrete Semiconductor ProductsTransistorsBipolar (BJT)Single Bipolar Transistors |
|---|---|
| Mfr | Toshiba Semiconductor and Storage |
| Series | - |
| Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 150 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 10mA, 100mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 2mA, 6V |
| Power - Max | 150 mW |
| Frequency - Transition | 80MHz |
| Operating Temperature | 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | S-Mini |
| Base Product Number | 2SC2712 |
